fiber MPO- LC patch cords

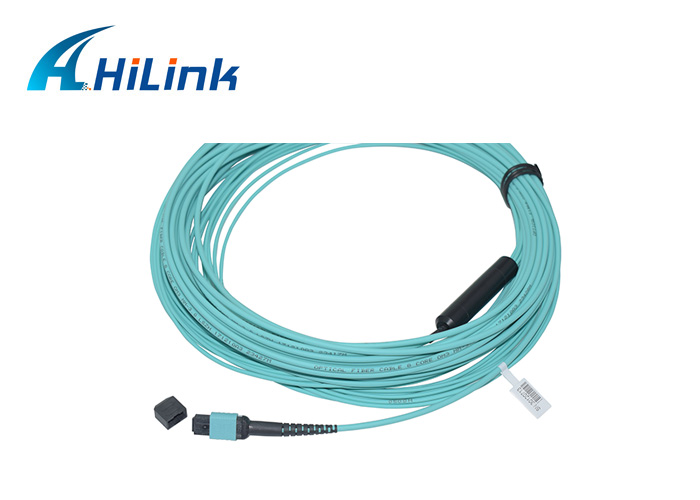

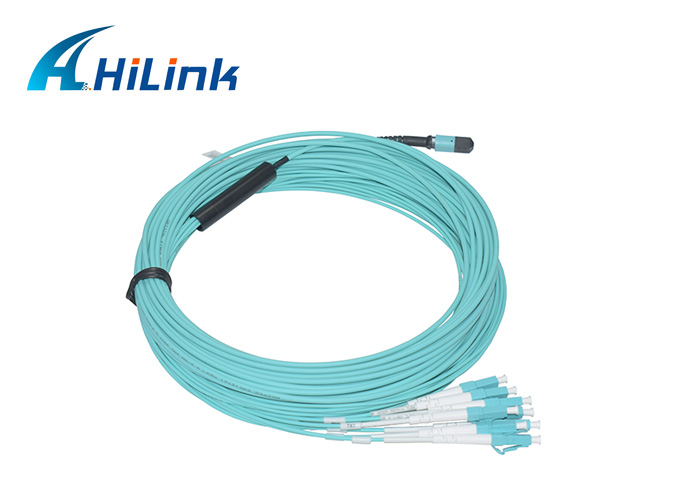

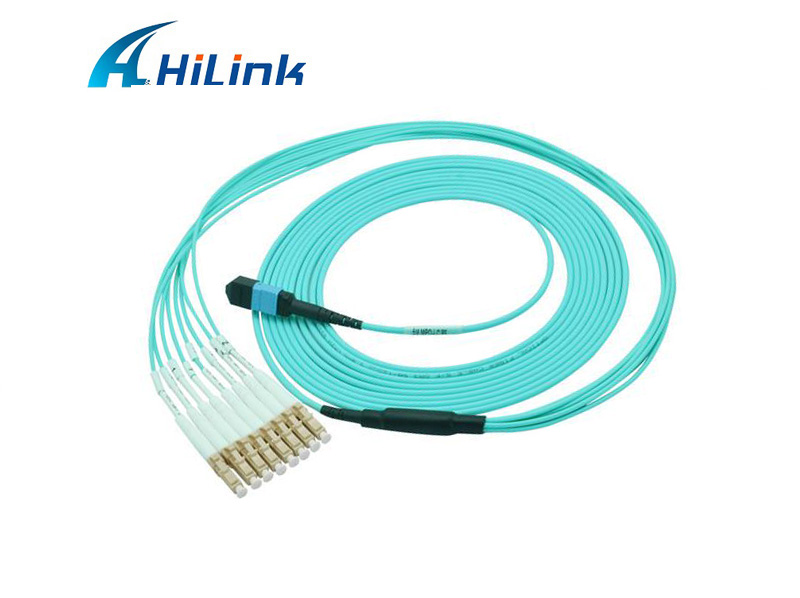

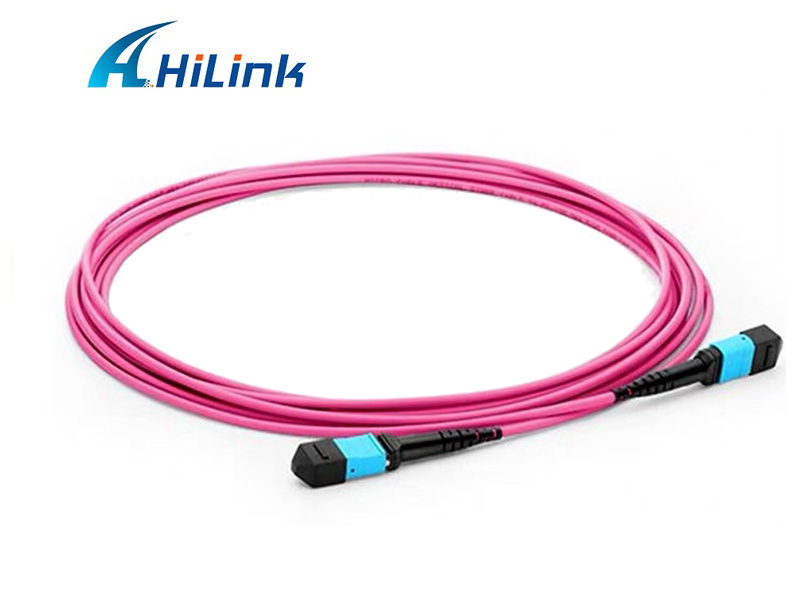

Hilink High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 8 CoreDesigned as a cable assembly used for fan-out or breakout data center interconnects, the Hilink MTP/MPO harness cable is fully configurable, available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.
MPO/MTP to LC , 40G and 100G QSFP, by breakout 4SFP+/SFP28
Features
● Insertion loss type available in Standard, Elite / Low Loss
● Fiber count available in 8, 12, and 24
● MTP/MPO connector type available in Male and Female
● Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
● Cable jacket type available in OFNR, LSZH, OFNP
● Fanout length available in 0.5m, 1m, etc.
● Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
● Single-fiber connector type available in LC, SC with APC or UPC polishing type
● Overall cable length available in 1 to 999 meters
● Factory terminated & tested with guaranteed quality
● High density to dramatically save space
● Comply with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS
What is the MPO/MTP type?
| Type | male(with Pin),female(without Pin) |
| Ferrule type | Standard SM,Low loss SM;Standard MM,Low loss MM |
| Fiber core | 4core,8core,12core,24cores |
| Housing color | Green(SM),Beige(MM),Yellow(SM Low loss),Blue( OM3 50/125 ) |
| Polishing way | PC,APC,UPC |
| Cable type | Ribbon cable,Ribbon fiber,3.0mm Mini cable(250um12F,24F),0.9mm cable |
Performance:
| MPO/MTP | SM standard ferrule | SM low loss ferrule | MM standard ferrule | MM low loss ferrule | |
| IL Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| RL | APC≥50dB | ≥ 25dB | ≥ 35dB | ||
| PC ≥ 40dB | |||||
| Repeatability | ≤0.30dB(Plug more than 500 times) | 0.30dB(Plug more than 1000 times) | |||
| Interchangeability | ≤0.30dB(With either a matching connector) | ||||
| Tensile strength | ≤0.30dB(Maximum tension 66N) | ||||
| Shock | ≤0.30dB(10~55Hz) | ||||
| Temperature Range | -40°C ~ +75°C | ||||
